Custom configurations available on request

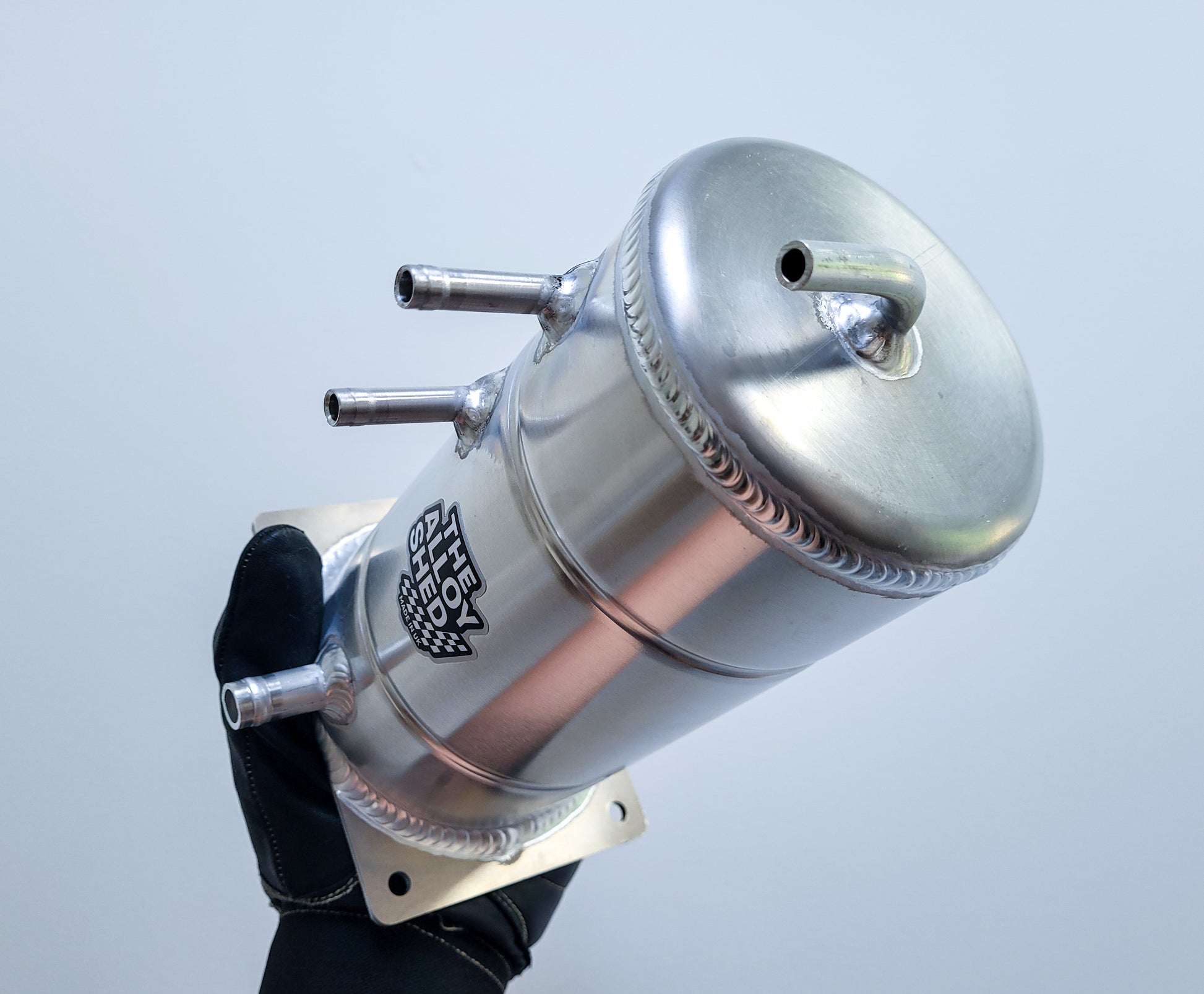

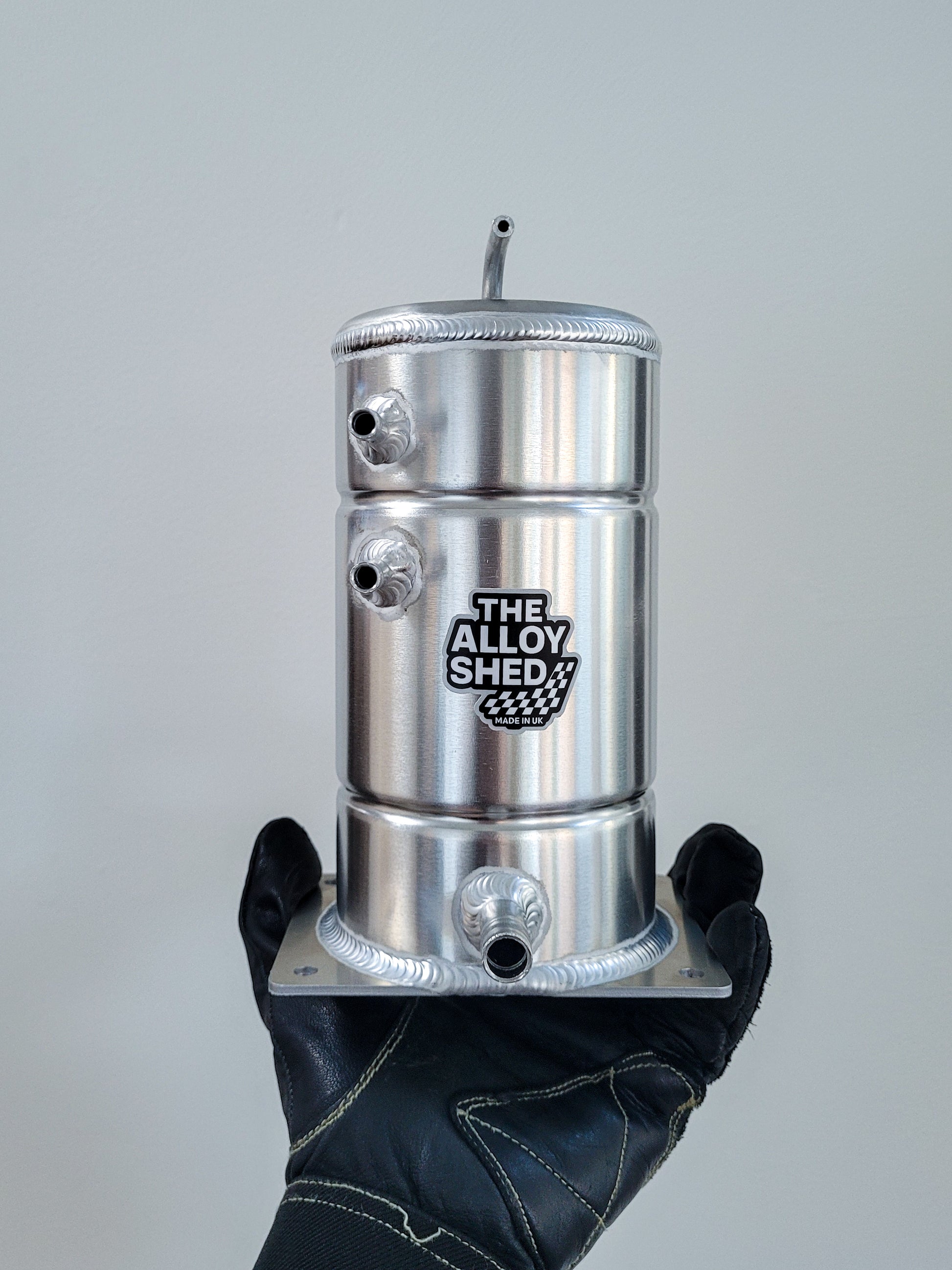

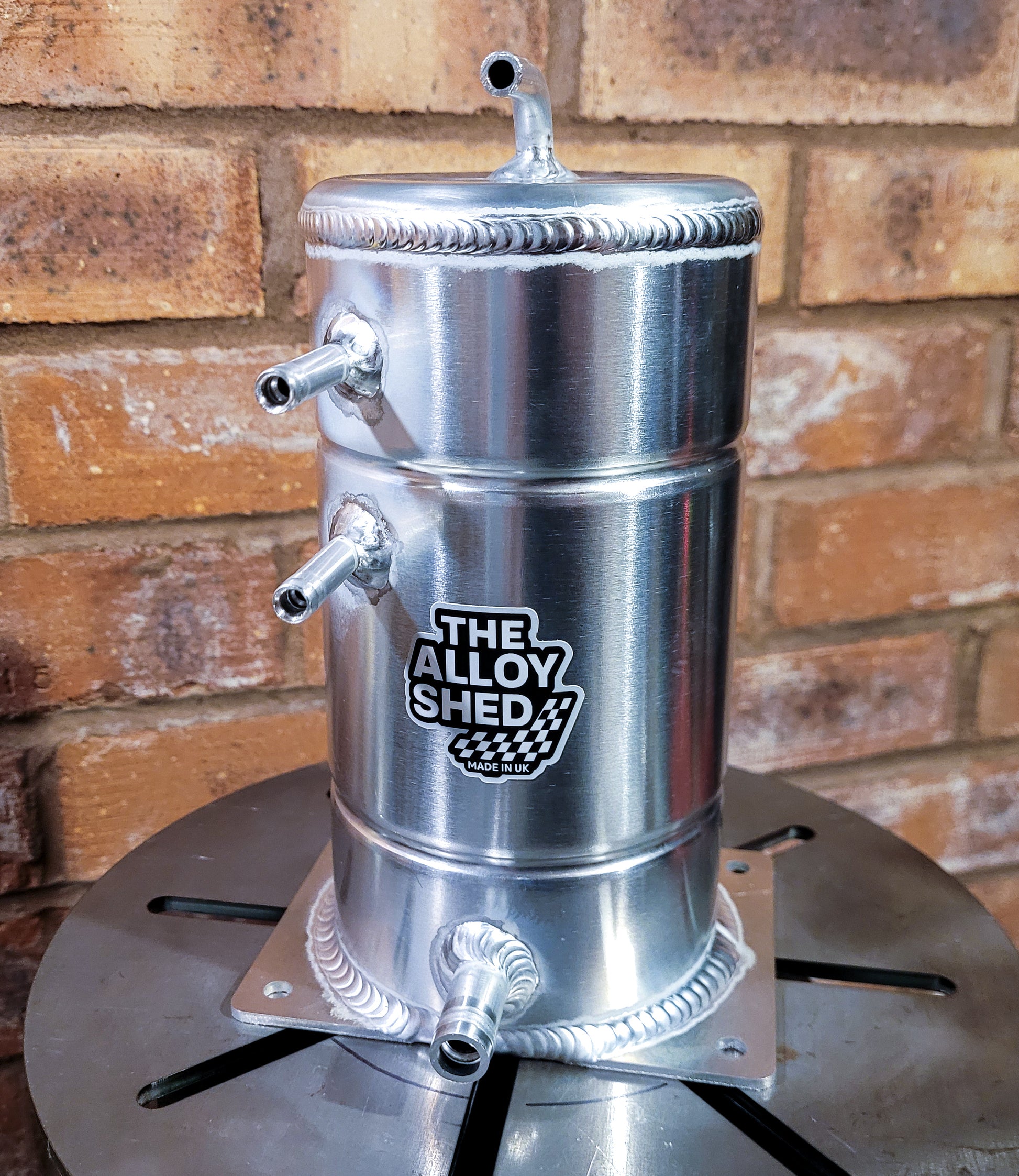

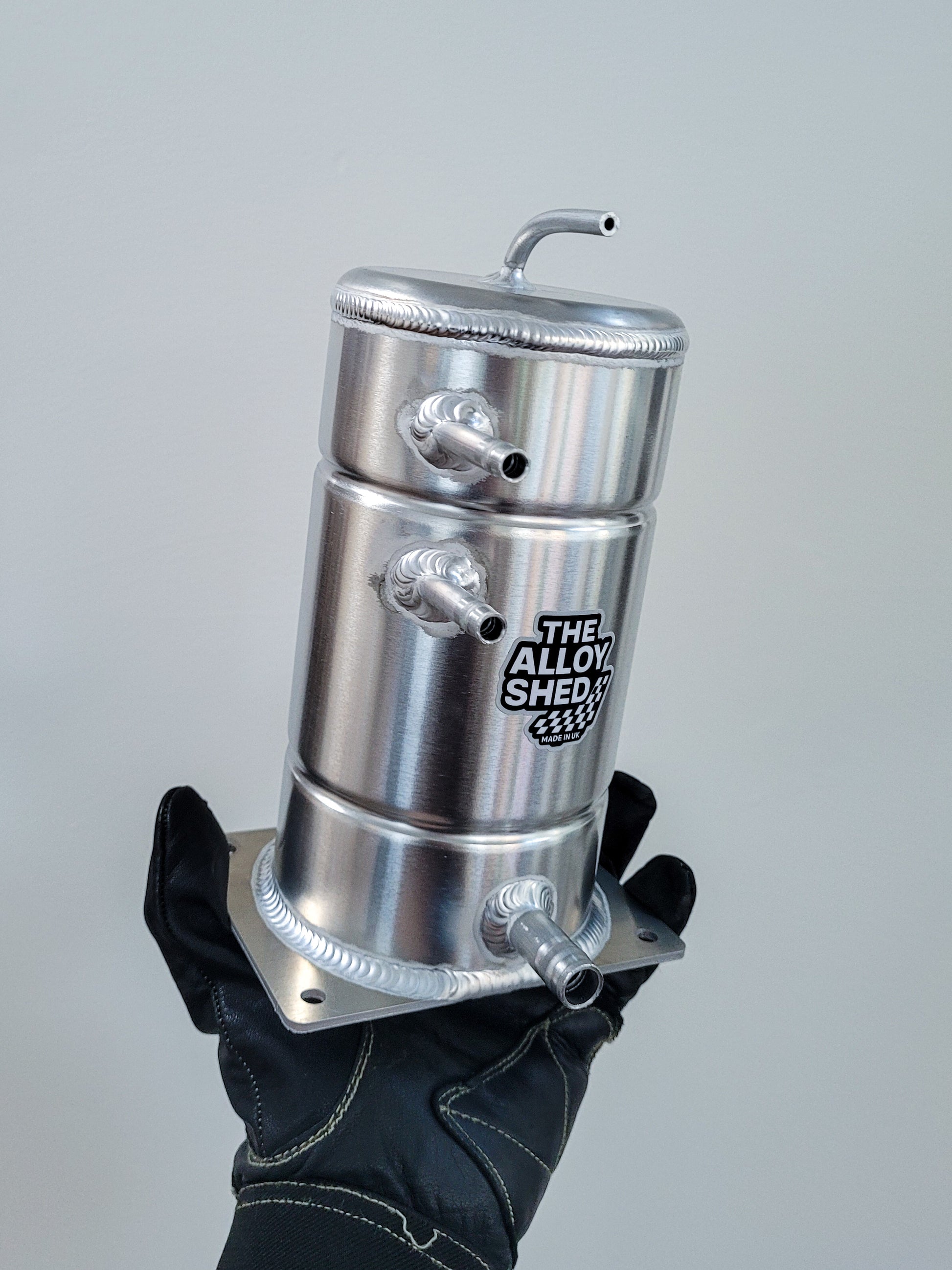

This 1.5 litre aluminium fuel swirl pot is designed for motorsport and performance fuel systems where a consistent fuel supply must be maintained during cornering, acceleration and braking.
Please note: this item may currently be made to order. Typical dispatch time is around 5 working days, though stock availability is updated regularly.
The swirl pot acts as an intermediate reservoir between the main fuel tank and the high-pressure fuel pump, helping to prevent fuel starvation under sustained load.

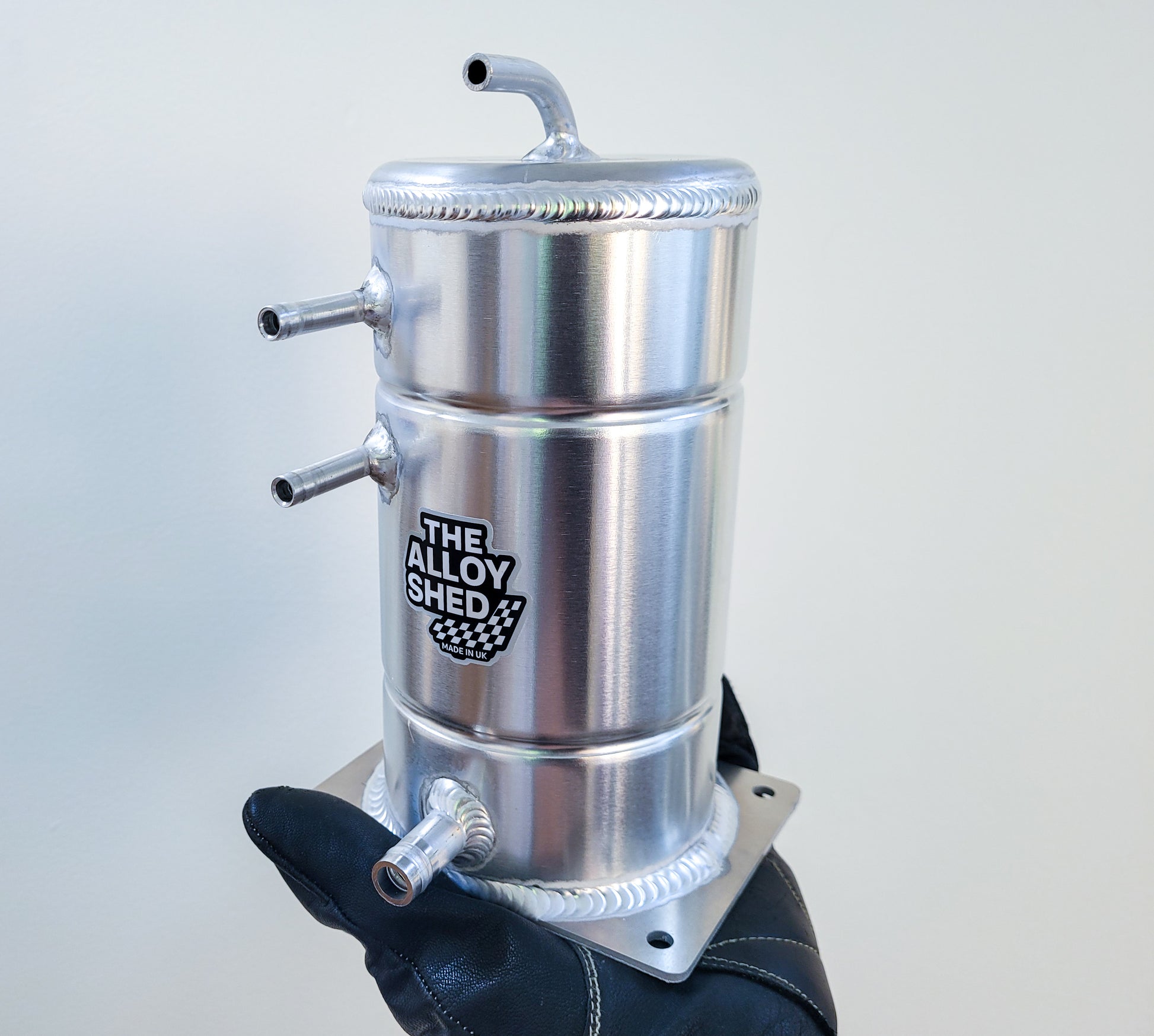

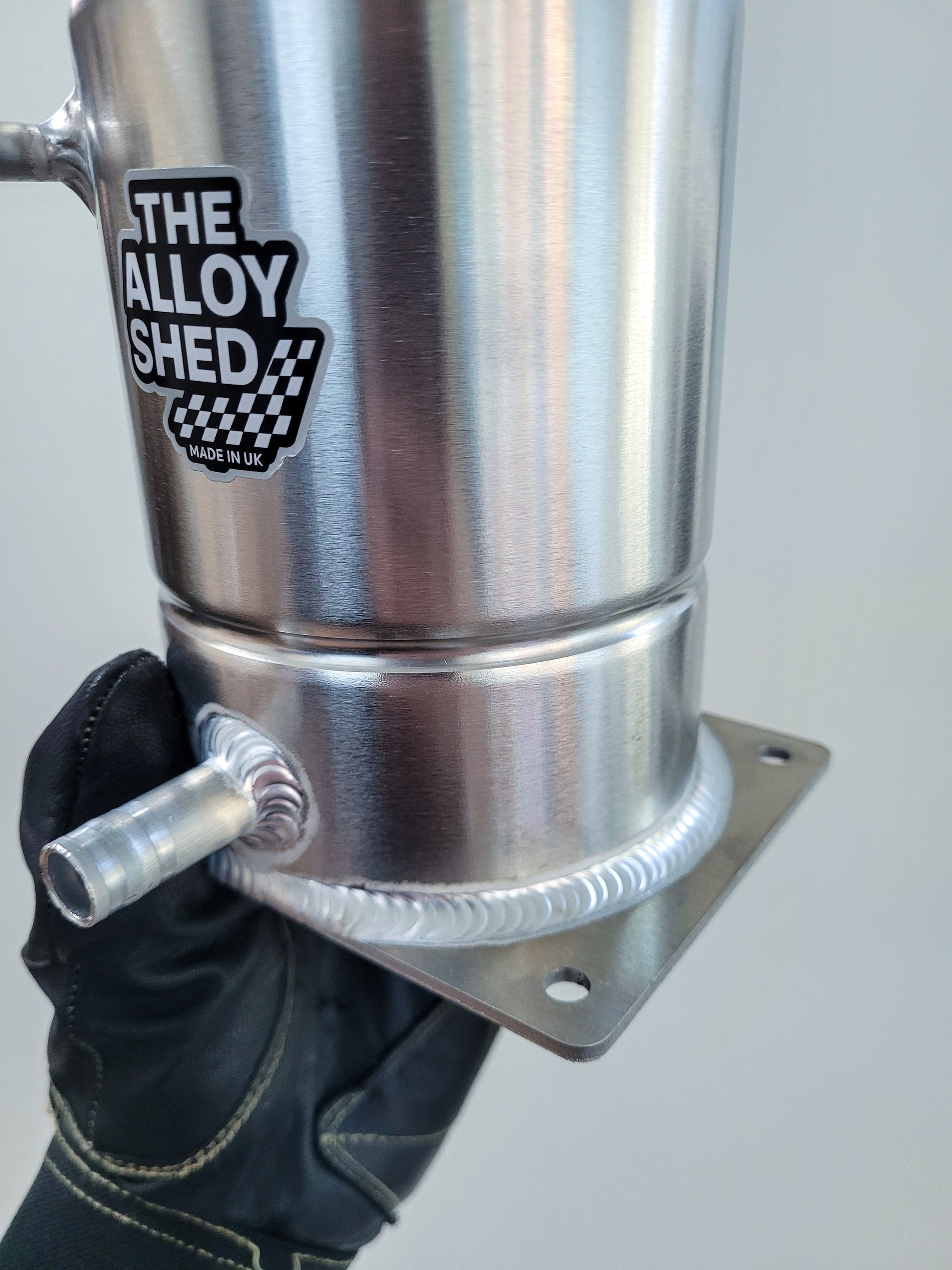

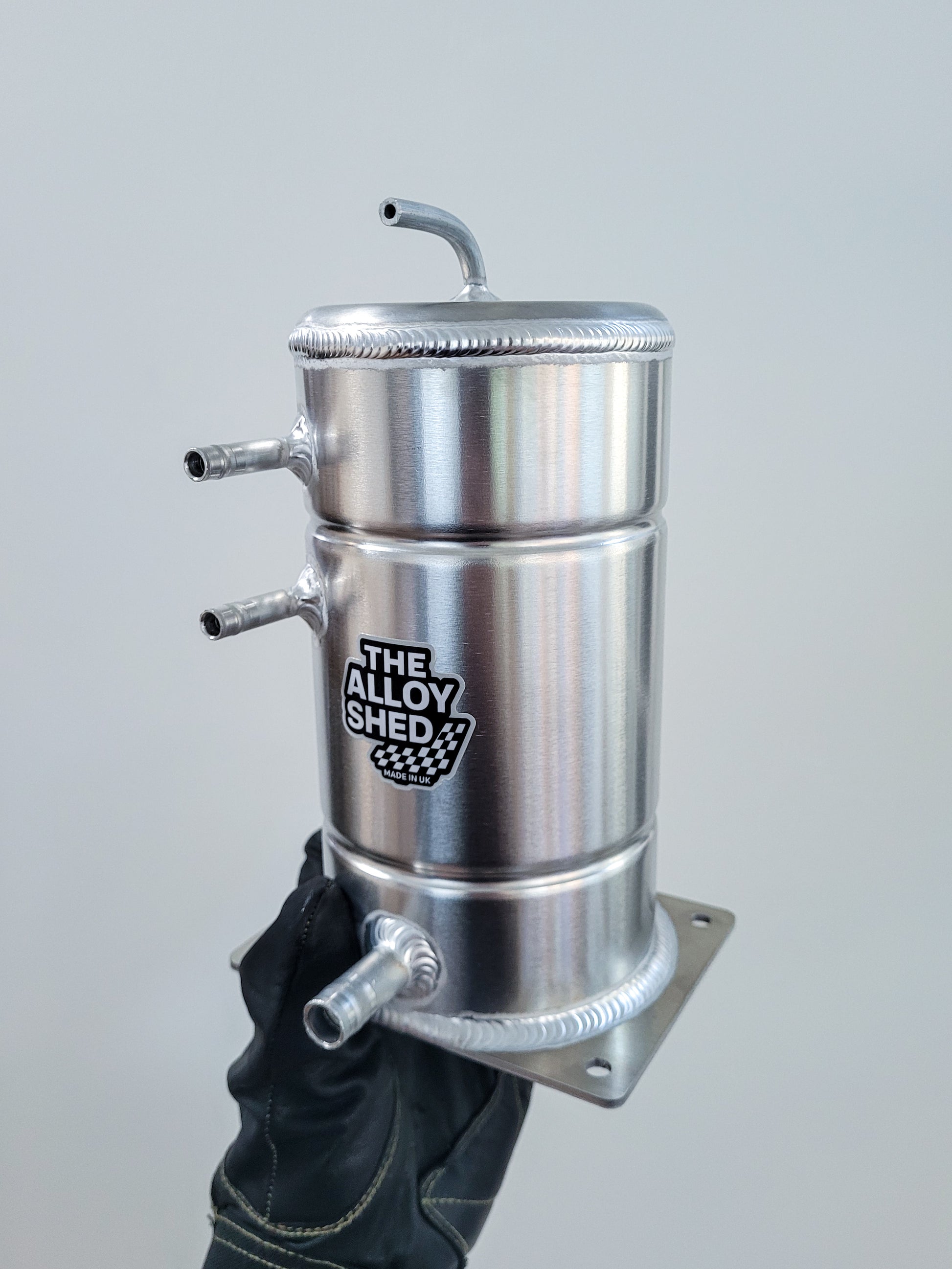

The unit features a 13 mm fuel outlet, 8 mm return inlets, and 6 mm vent / overflow, providing a simple and effective layout suitable for a wide range of fuel system configurations.

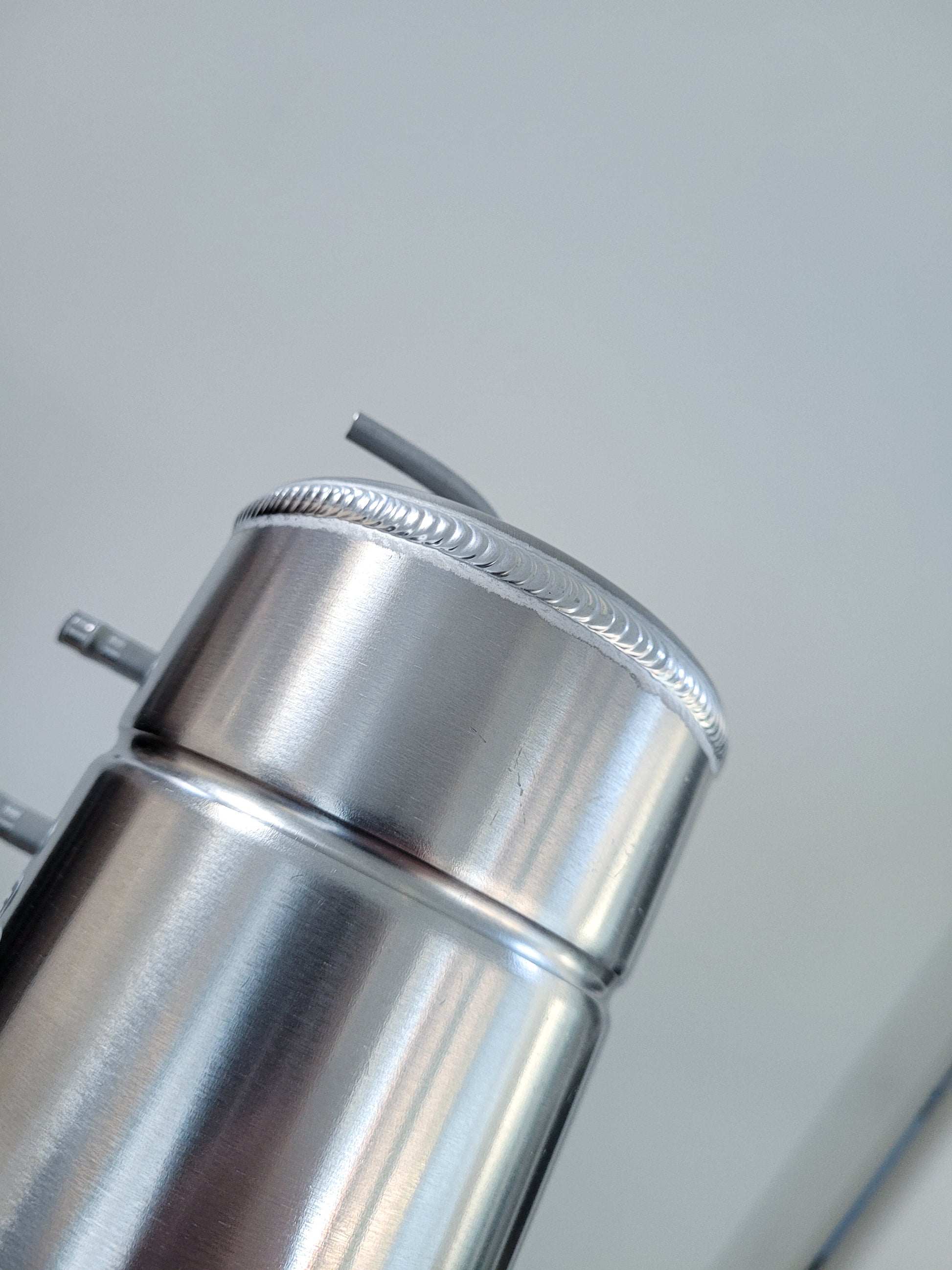

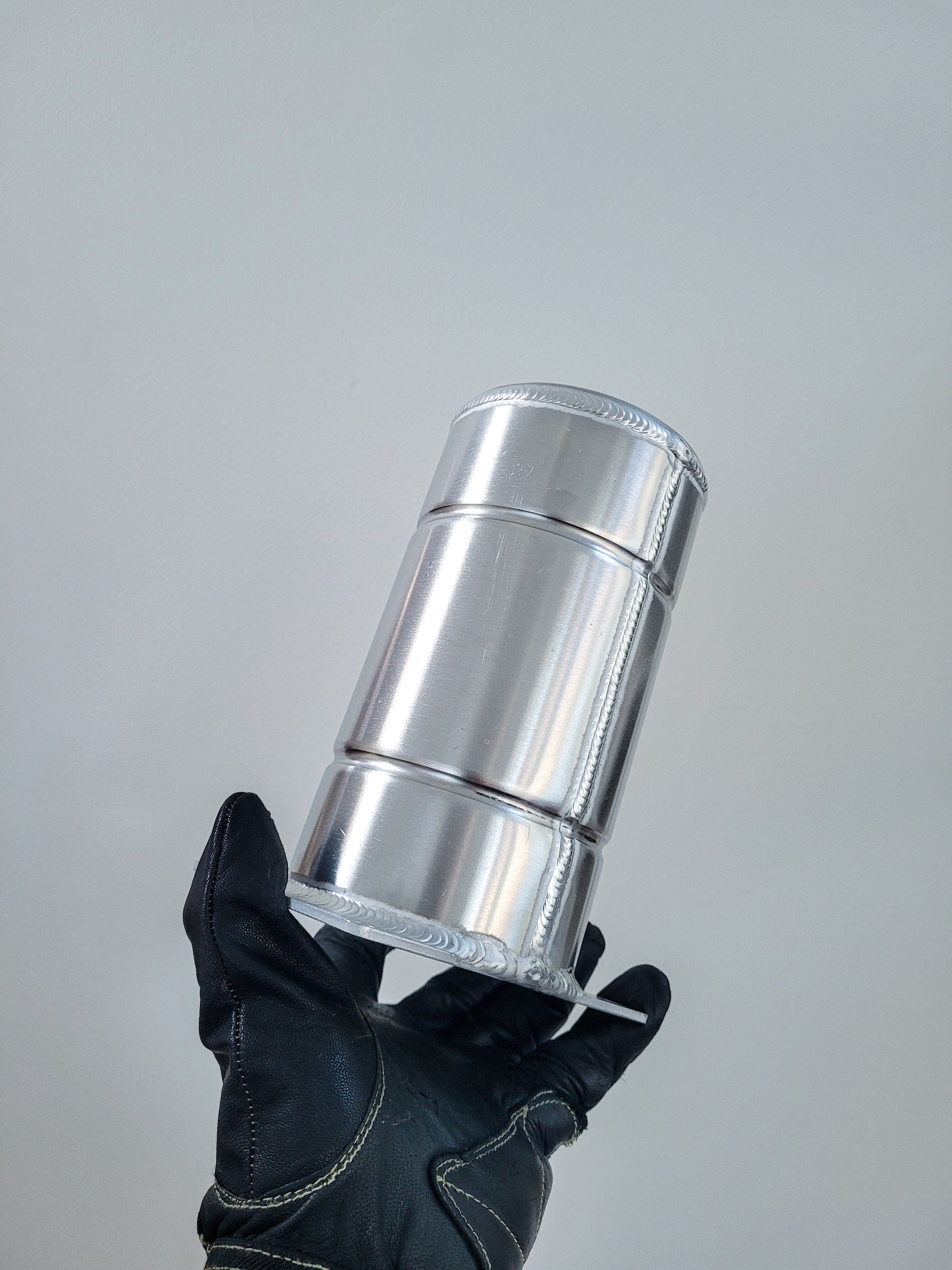

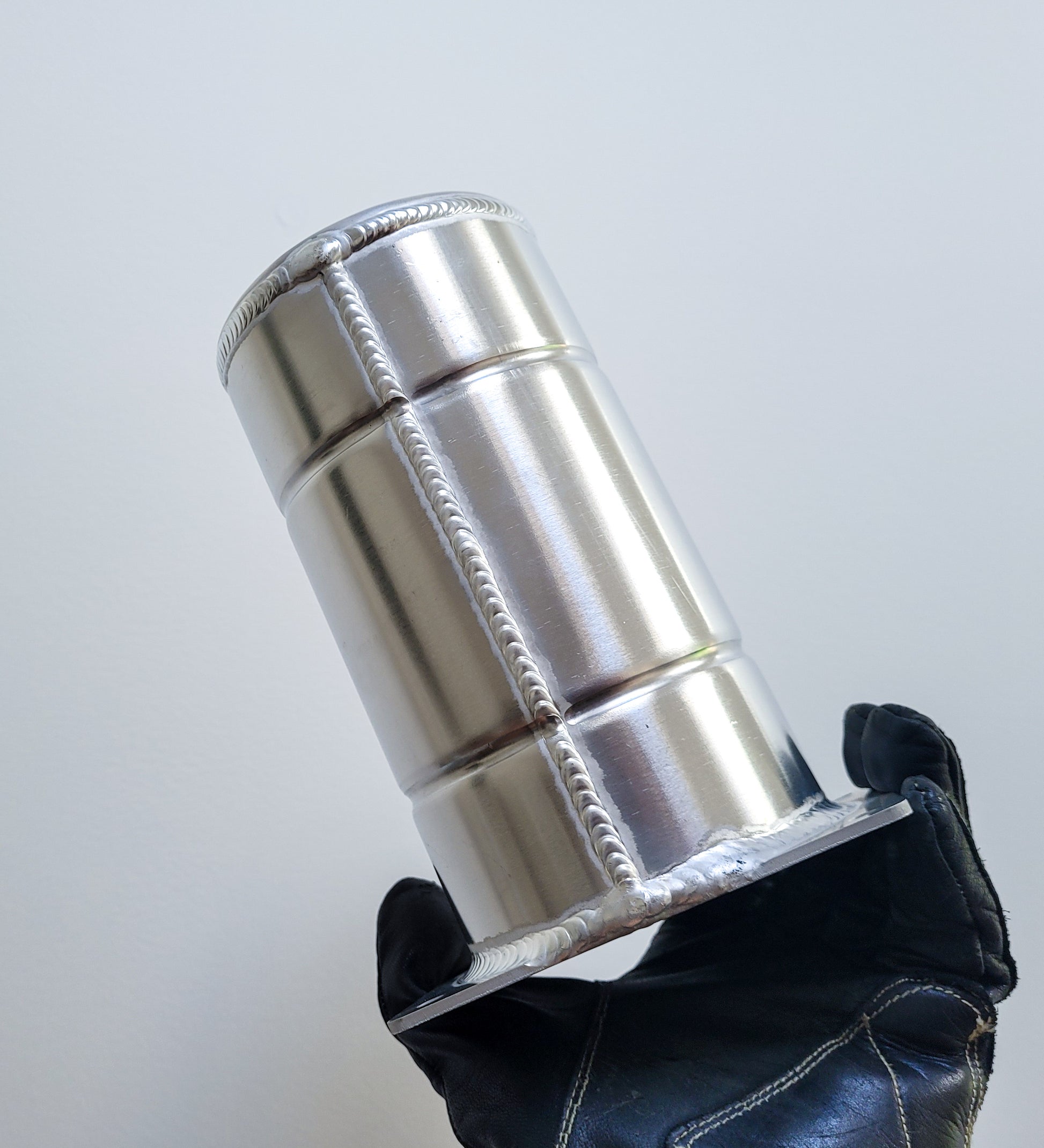

Constructed from aluminium and TIG welded throughout, the swirl pot is designed to withstand vibration, heat and repeated use in demanding motorsport environments.
---
Specification
Capacity: 1.5 litres
Diameter: 101mm (4 inch)
Length: 193mm (approx)
Fuel outlet: 13 mm
Return inlet: 8 mm
Vent / overflow: 6 mm
TIG welded construction
Suitable for motorsport and performance fuel systems
Build philosophy & quality assurance
All products are manufactured in low volume to allow proper control over fit-up, welding and finishing.
Built properly. Not quickly.
